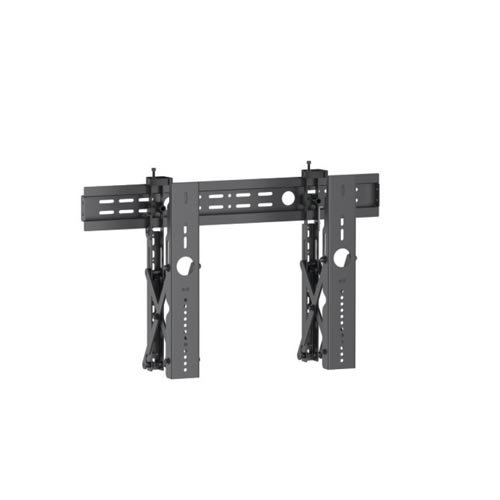

LVW 02 46T
Video Wall Mount

Product Name: VIDEO WALL MOUNT
By Grade: Standard Series
By Function: Micro adjustment, Pop-out
By Mounting Pattern: Universal
Material: Steel
Thickness: wall plate:2mm,TV plate:2.5mm
Surface Finish: Powder coating
Available Color: black
Product Size: 760x465x202mm
Suggested Screen Size: 37″-70″
Installation: Solid wall
Rated Load: 45 kg
Strength tested: 4 times approved
Max.Hole Pattern: 696x415mm
VESA: 200×200,400×200,300×300,
400×400,600×400
Level Adjustment: +/-3°
Profile: 68-215mm
Anti-theft: YES
Panel separated: YES
User Manual : Yes
Category:

Description

LVW02-46T is a professional video wall mount designed to offer the ultimate versatility and universal compatibility with a load capacity of 45 kg and Max. Vesa 600×400 hole pattern. This mount extends out 215mm from the wall by a press with a pop-out function and places 68 mm to the wall when retracted with a quick-lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with an anti-theft design (require for a padlock). To customize multiple screen display solutions, please use connecting plates.

Download: LVW 02 46T Datasheet
