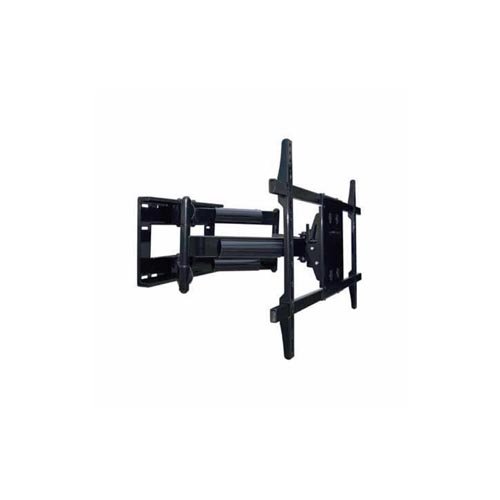

BT-866TPS
Heavy Duty Swivel Wall Mount

Product Category: Full-motion TV Wall Mount
Rank: Economy
Surface Finish: Powder Coating
Color: Matte Black
Fit Screen Size: most 32 ~ 75″
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 75×75,100×100,200×100,200×200,
300×300, 400×400, 600×400,600×600, 800×600
Max. VESA: 800×600
Weight Capacity: 90 Kg
Profile: 76~800 mm
Tilt Range: +5° ~ -15°
Installation: Solid Wall, Single Stud
Bubble Level: yes
Accessory Kit Package: Zip Polybag
Category:

Description

The BT-866TPS is a Steel Full-Motion TV Wall Mount that accommodates most 42~65″ flat-panel TVs that weigh up to 90 Kgs. Its full-motion capability allows a +5°~-5° tilting and a +90°~-90° swiveling of your TV, maximizing viewing flexibility from anywhere in the room. A level adjustment ensures the TV is perfectly positioned post-installation.

Download: BT-866TPS Datasheet
