| Product Category: | Full-motion TV Wall Mount |
| Rank: | Economy |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |
| Fit Screen Size: | most 23 ~ 70″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA Only |
| VESA Compatible: | 75×75,100×100,200×100,200×200, |
| 300×300, 400×400, 600×400 | |
| Max. VESA: | 600×400 |
| Weight Capacity: | 70 Kg |
| Profile: | 50~360 mm |
| Tilt Range: | 0° ~ -15° |
| Installation: | Solid Wall, Single Stud |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Bubble Level: | yes |
| Accessory Kit Package: | Zip Polybag |

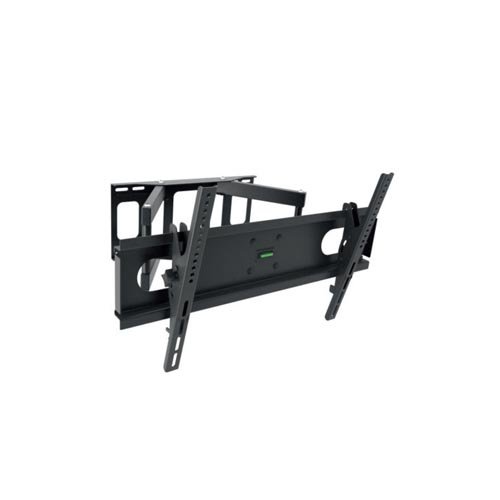

The BT-602TPS is a Steel Full-Motion TV Wall Mount that accommodates most 23~70″ flat-panel TVs that weigh up to 70 Kgs. Its full-motion capability allows a 0°~-15° tilting and a +45°~-45° swiveling of your TV, maximizing viewing flexibility from anywhere in the room. A level adjustment combined with an internal bubble level ensures the TV is perfectly positioned post-installation.
